Benchmark¶

This user guide shows how to run benchmarks against a vLLM model server deployment by using both Gateway API Inference Extension, and a Kubernetes service as the load balancing strategy. The benchmark uses the Latency Profile Generator (LPG) tool to generate load and collect results.

Prerequisites¶

Deploy the inference extension and sample model server¶

Follow the getting started guide to deploy the vLLM model server, CRDs, etc.

Note: Only the GPU-based model server deployment option is supported for benchmark testing.

[Optional] Scale the sample vLLM deployment¶

You are more likely to see the benefits of the inference extension when there are a decent number of replicas to make the optimal routing decision.

kubectl scale deployment vllm-llama3-8b-instruct --replicas=8

Expose the model server via a k8s service¶

To establish a baseline, expose the vLLM deployment as a k8s service:

kubectl expose deployment vllm-llama3-8b-instruct --port=80 --target-port=8000 --type=LoadBalancer

Run benchmark¶

The LPG benchmark tool works by sending traffic to the specified target IP and port, and collecting the results. Follow the steps below to run a single benchmark. Multiple LPG instances can be deployed to run benchmarks in parallel against different targets.

Install the LPG benchmark tool by running the below helm chart.

export BENCHMARK_DEPLOYMENT_NAME=benchmark-tool
helm install $BENCHMARK_DEPLOYMENT_NAME \
--set moderlServingEndpoint.mode=service \
--set moderlServingEndpoint.name=vllm-llama3-8b-instruct\
--set moderlServingEndpoint.namespace=default \
oci://registry.k8s.io/gateway-api-inference-extension/charts/benchmark

Download the results¶

Check out the repo to use the tools available to download and analyse the benchmark results

git clone https://github.com/kubernetes-sigs/gateway-api-inference-extension
cd gateway-api-inference-extension

When the LPG tool finishes benchmarking, it will print a log line LPG_FINISHED. The script below will watch for that log line and then start downloading results. Use the benchmark_id environment variable to specify what this benchmark is for. For instance, inference-extension or k8s-svc. Use BENCHMARK_DEPLOYMENT_NAME environment variable to specify the deployment name used in previous step to install the LPG benchmark helm chart to download the results from respective deployment.
```
benchmark_id='k8s-svc' BENCHMARK_DEPLOYMENT_NAME=benchmark-tool ./tools/benchmark/download-benchmark-results.bash
```
After the script finishes, you should see benchmark results under ./tools/benchmark/output/default-run/k8s-svc/results/json folder. Here is a sample json file. Replace k8s-svc with inference-extension when running an inference extension benchmark.

Tips¶

When using a benchmark_id other than k8s-svc or inference-extension, the labels in ./tools/benchmark/benchmark.ipynb must be updated accordingly to analyze the results.
You can specify run_id="runX" environment variable when running the ./download-benchmark-results.bash script. This is useful when you run benchmarks multiple times to get a more statistically meaningful results and group the results accordingly.
Update the request_rates that best suit your benchmark environment.

Advanced Benchmark Configurations¶

Refer to the LPG user guide for a detailed list of configuration knobs.

Analyze the results¶

This guide shows how to run the jupyter notebook using vscode after completing k8s service and inference extension benchmarks.

Create a python virtual environment.

python3 -m venv .venv
source .venv/bin/activate

Install the dependencies.

pip install -r ./tools/benchmark/requirements.txt

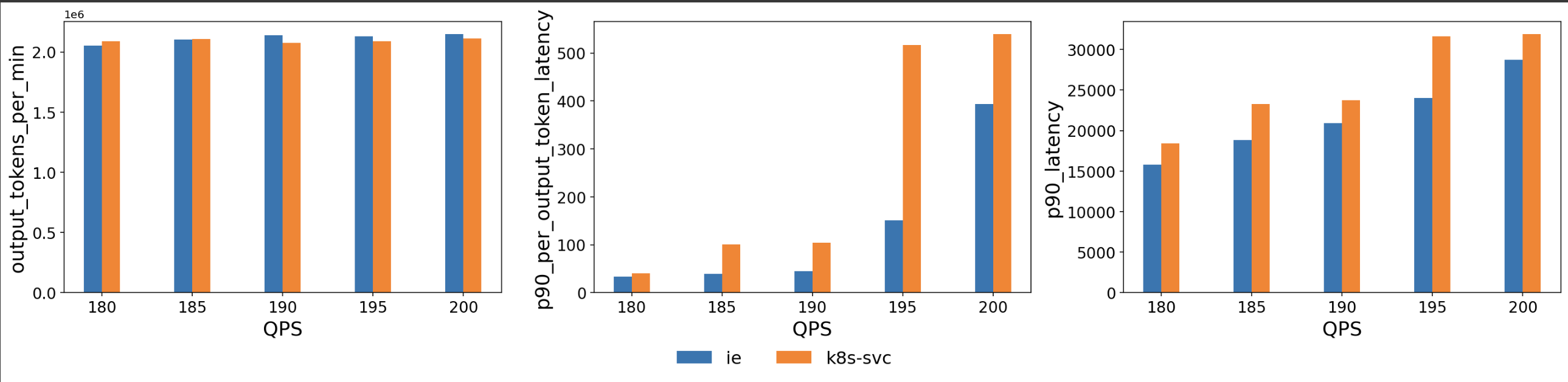

Open the notebook ./tools/benchmark/benchmark.ipynb, and run each cell. In the last cell update the benchmark ids withinference-extension and k8s-svc. At the end you should see a bar chart like below where "ie" represents inference extension. This chart is generated using this benchmarking tool with 6 vLLM (v1) model servers (H100 80 GB), llama2-7b and the ShareGPT dataset.
